KATANA – Wired Fuel Level Sensor

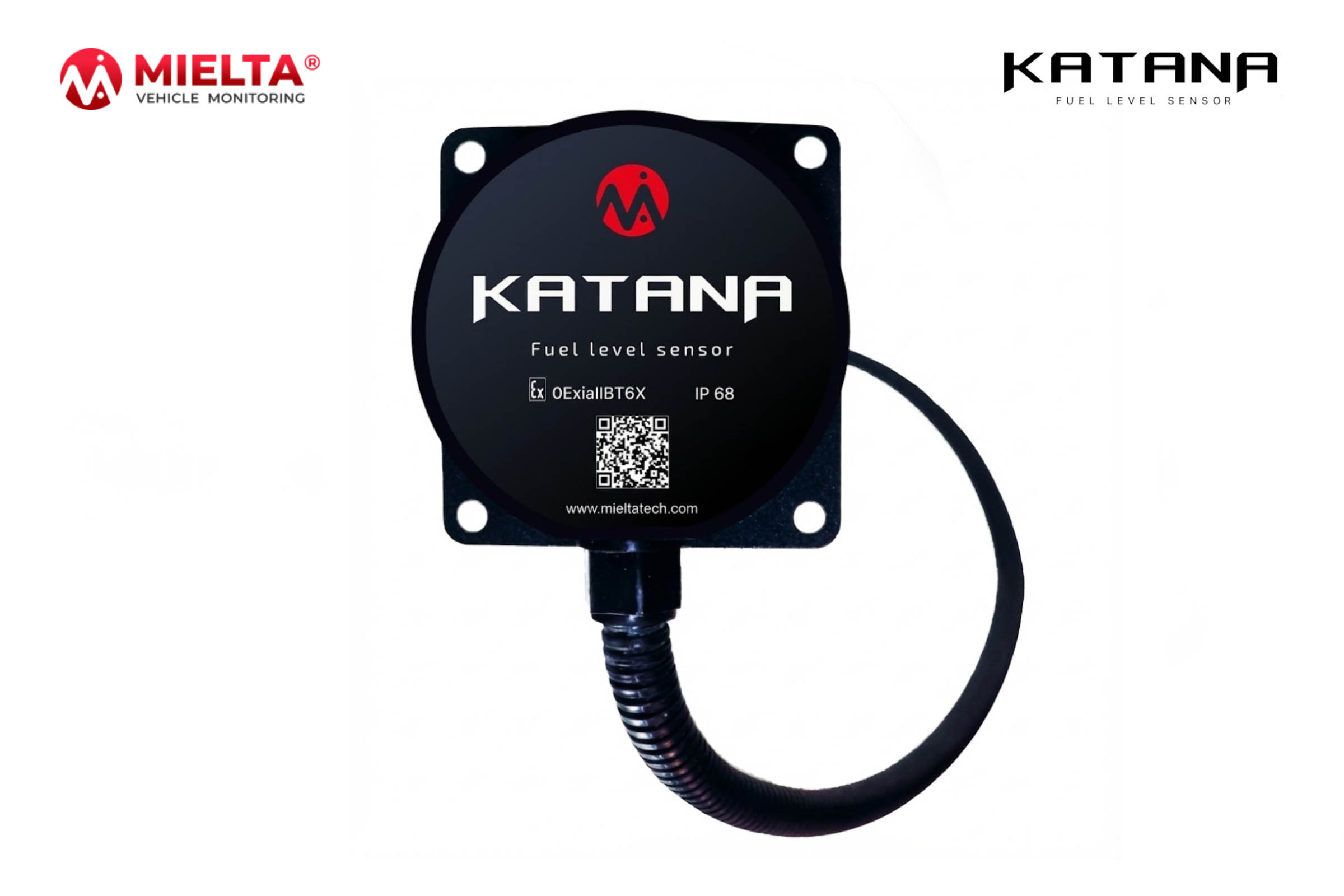

MIELTA® KATANA – Fuel Level Sensor
MIELTA® KATANA is a reliable and cost-effective fuel level sensor designed for accurate measurement of light petroleum products such as diesel, petrol (gasoline), and kerosene. Built on proven MIELTA technology, KATANA offers high measurement accuracy, robust construction, and stable performance in demanding automotive and industrial environments. It is an ideal solution for fleet operators, special equipment, and stationary fuel storage facilities seeking dependable fuel monitoring at an optimized cost.
Key Features & Benefits
- Accurate fuel level measurement with ≤1% error across the full range
- Compatible with diesel, petrol, kerosene, and other light petroleum products
- Durable stainless-steel measuring tube and electrode with oil-resistant coating
- IP68-rated oil-resistant housing for harsh operating conditions
- RS-485 digital interface and frequency output for flexible system integration
Applications
MIELTA® KATANA is suitable for a wide range of fuel monitoring applications:
- Commercial vehicles, trucks, buses, and transport fleets
- Construction, mining, agricultural, and special equipment
- Railway vehicles and fuel systems
- Stationary fuel tanks and storage facilities
- Industrial fuel monitoring and consumption control systems
Technical Data Sheet
| Parameter | Specification |
|---|---|
| Supply Voltage | 8 – 55 V |
| Average Power Consumption | 0.5 W |
| Measurement Period | 1 sec |
| Averaging Interval | 1 – 60 sec |
| Relative Measurement Error | ≤ 1% |
| Measurement Length | 1000 mm |
| Frequency Output Range | 30 – 2048 Hz |
| Frequency Output Resolution | 1 Hz |
| Frequency Output Pull-up | 2 kΩ |
| Frequency Output Current Limit | 100 mA |
| RS-485 Communication Speed | 9600 / 19200 / 38400 / 57600 / 115200 |
| Operating Temperature | -40 to +80 °C |
| Enclosure Protection | IP68 |
| Housing Dimensions | 76 × 80 × 25 mm |
Download Technical Specifications: Mielta Katana Brochure (PDF)
Why Choose Us?
- Authorised supplier of MIELTA® fuel level sensors
- Technical support for configuration, calibration, and integration
- Reliable, field-proven products with long service life
- Solutions suitable for fleets, industrial equipment, and storage tanks
- Pan-India availability with professional after-sales support
With us, you don’t just purchase a fuel level sensor — you gain a trusted technology partner. We support you from product selection and system integration to deployment and long-term operation, ensuring accurate fuel control, operational transparency, and dependable performance.
Request a Quotation for KATANA – Wired Fuel Level Sensor
Fill out the form below or contact us directly to request a customized quotation. Whether you require a single unit or bulk deployment for fleets or storage facilities, our team will offer competitive pricing, technical support, and dependable delivery. Partner with us for reliable fuel monitoring solutions built for accuracy, durability, and long-term performance.
